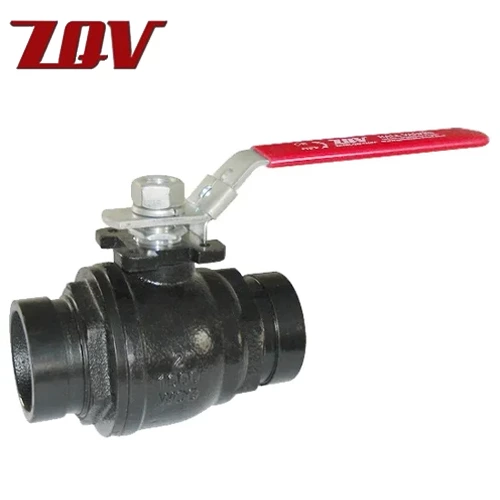

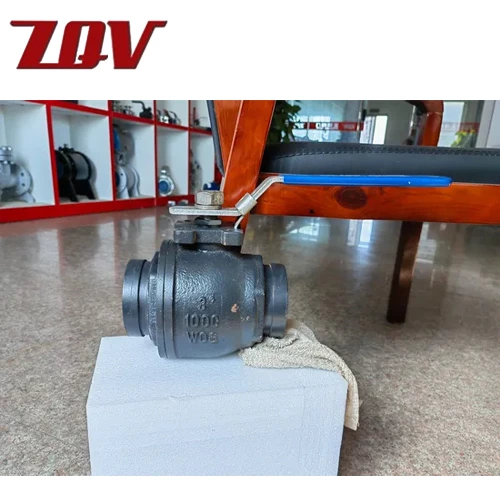

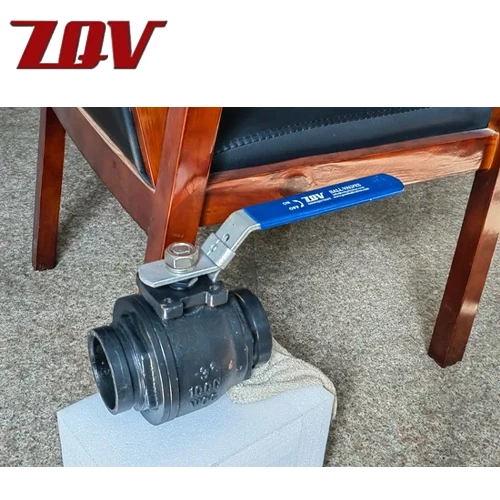

Grooved End stainless steel Floating Ball Valve
Size Range
2" to 6"
Body Materials
A351 CF8M / A395 DI
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Grooved End
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port / Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Quick Detail
- Size: 1''-4''(DN25~DN100)
- Pressure Rating: 1000PSI~6000PSI / 800LB~2500LB / PN120~PN420 / 10K~100K
- Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,A105,F304,F316 ,F51/F53/C95800
- Suitable Temperature: -20ºC~180ºC( Different temperature choose different materials).
- Suitable Medium: Water, Steam, Oil and natural gas etc.
Technical Specification
- Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
- Pressure & Temperature standard: ASME B16.34/DIN3230
- Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
- Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
- Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
Feature
- Floating ball, full bore or reduce bore.
- ISO5211 mounting pad for option.
- Blow-out proof stem design.
- PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
- Anti-static design and API 607 Fire Safe Design available
- Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
