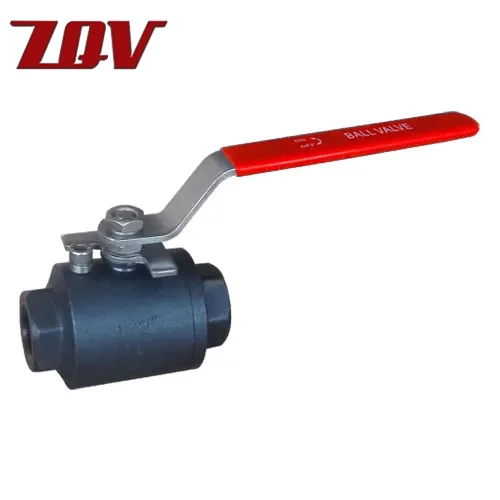

Clss 800LB Carbon steel Threaded Ball Valve
Size Range
1/4“ to 4”
Design Standard
ASME B16.34 , API 607,API 608
Testing Standard
MSS-SP72,API 598
End Connections
Threaded ASME B1.20.1 NPT
Face to Face
Manufacturers Standard
Body Materials
ASTM A105 / A182 F316 / A182 F304
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
Ports
Full Port / Reduced Port
Applications
General Service, Air, Water, Oil & Gas
Description
| Body | ASTM A105- Carbon Steel ASTM A182 F304 / F304L- Stainless Steel ASTM A182 F316 / F316L- Stainless Steel ASTM A182 F11/F22- Alloy Steel |
| Ball | ASTM A 182 F304/F316/F304L/F316L |
| Stem | ASTM A182 F304/F316/F304L/F316L,SS420,17-4PH |
| Ball Seat& BodySeal |
TFM/MYLON 25% Glass Filled (RPTFE), 25% Carbon Filled (CPTFE) Peek /Delrin 304+Graphite |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2'' (DN8) to 4''(DN100) |
| Pressure Rating of Valve | CLASS 800 CLASS 1500 CLASS 2500 2000PSI 300PSI 5000PSI 6000PSI PN100 PN160 PN250 PN420 |
| Option | Reduced Port /Full Port Blow-out-Proof Stem Anti-static device API 607 Firesafe Approval Lock device Oval Handle Spring return handle Pneumatic actuator SAE Thread |
