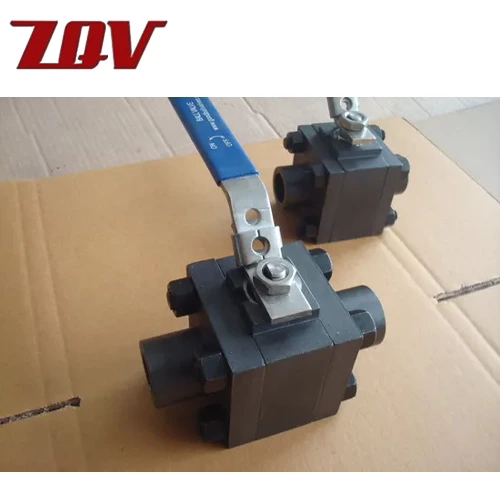

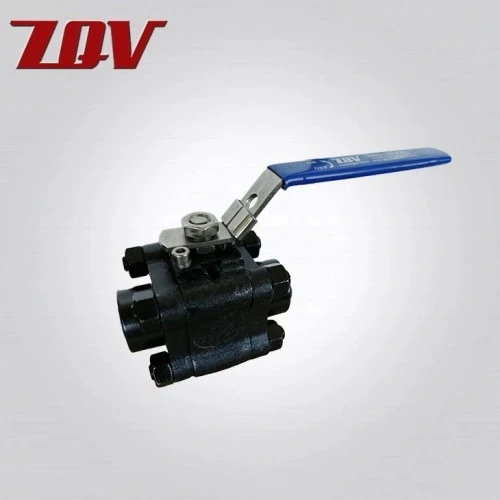

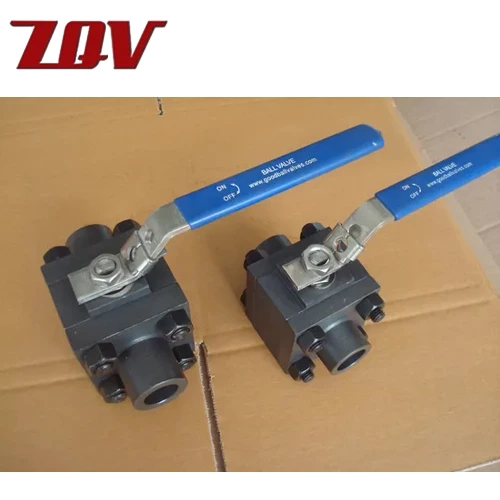

Forged Steel Socket welded Ball Valve 800LB
Size Range
1/4“ to 4”
Design Standard
ASME B16.34 , API 607,API 608
Testing Standard
MSS-SP72,API 598
End Connections
Threaded ASME B1.20.1 NPT
Face to Face
Manufacturers Standard
Body Materials
ASTM A105 / A182 F316 / A182 F304
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG) CLASS800
Seat Materials
RPTFE
Body Style
Three Piece
Ball Materials
A182 F316
Ports
Full Port / Reduced Port
Applications
General Service, Air, Water, Oil & Gas
Description
Port: Full Port/Reduced Port
Size: 1/4" to 4"
Pressure: 800LB/1500LB/2500LB
Body: A105/LF2/F304/F613
Max Temp: 450ºF 232ºC
Ends:Screwed/Threaded end to ASMEB1.20.1(NPT)
Butt Weld end to ASME B16.25
Socket Weld end to ASME B16.11
Features:
3-Piece Body design
Forged Construction
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever
Spring Return Handle
Anti-Static Device
Pneumatic actuator
Test Standard: API 598/API 607/NACE MR-0175
Design Standard:ASME B16.34
