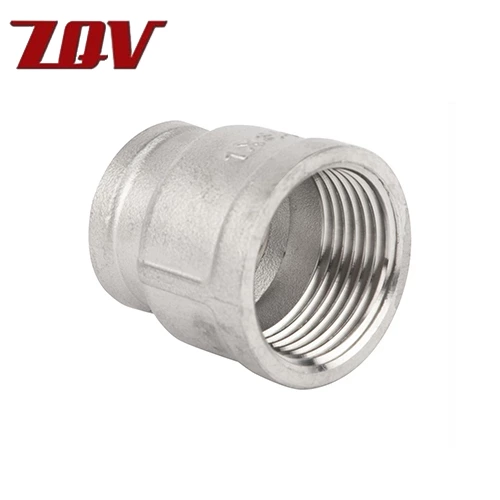

Cast steel Fitting
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
» Type: CASTING STAINLESS STEEL SCREWED FITTINGS
» Material: ASTM A351 CF8(SS304) & CF8M (SS316)
» Size: 1/8"--4"
» Threads: ANSI B 1.20.1 or BS21 or DIN2999
» Dimensions: CLASS 150, MSS-SP-114
» Marking: As per your requirement
» Inspection: In-house or the third party
» Delivery Time: Most sizes in-stock for immediate delivery
» MOQ: 10 pieces
» Packing: Wooden cases or as per requirement
» Productivity: 300000 tons per year
» Application: Petroleum, chemical, machinery, electric power, shipbuilding, construction, etc
» Surface Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black, zinc plated,etc
