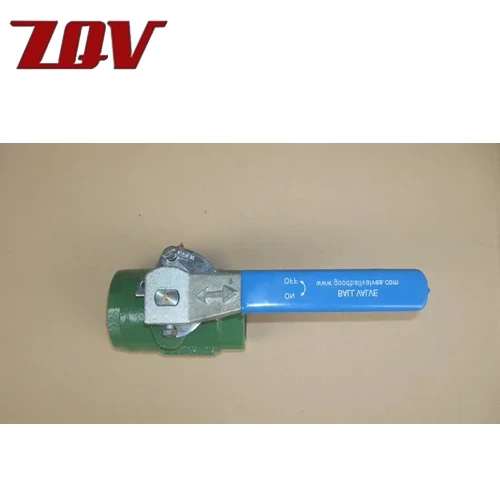

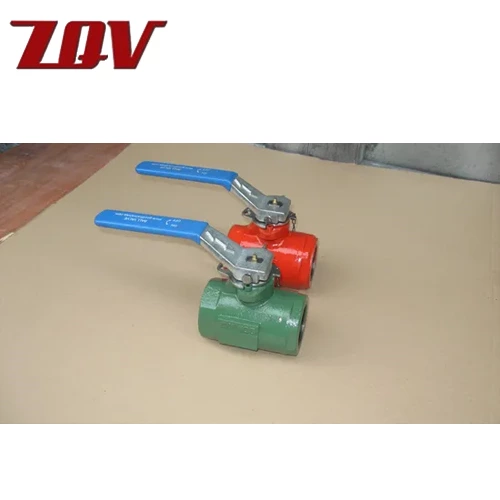

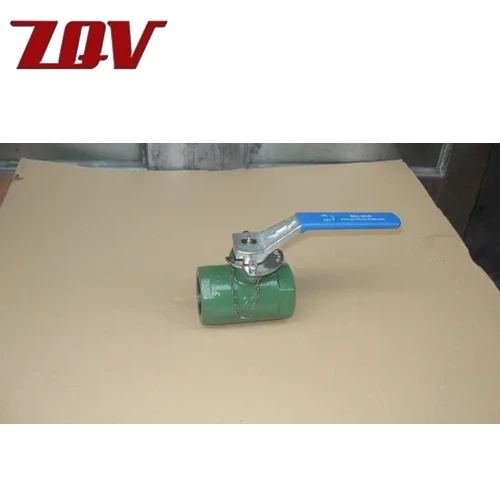

Ductile Iron Oilfield Ball Valve 2000PSI
Size Range
1“ to 4”
Body Materials
Ductile Iron DI
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
400 SERIES STAINLESS STEEL
Maximum Allowable Operating Pressure
1000 PSI (WOG) - 2000 PSI(WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
400 SERIES STAINLESS STEEL
End Connections
Threaded ASME B1.20.1 NPT / API 5B LP
Design Standard
ASME B16.34 , MSS SP-110,API 6D,API 608
Ports
Full Port/ Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port/Reduced Port
Size: 1" to 4"
Pressure: 1000PSI, 1500PSI, 2000PSI NSCWP
Body/Cap: Dctile Iron ASTM A395
SEAT: Soft Seat(RPTFE/DELRIN)
BALL/SEAT: SS TRIM SS420/SS304/SS316
Ends: ASME B1.20.1(NPT)/API 5B LPFeatures:
Threaded Body construction
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
Test Standard: API598
| SIZE | PORT | PRESSURE | L(mm) | H(mm) | d(mm) | D(NPT) | KGS |
| 1" | FP | 2000PSI | 102 | 93 | 25.4 | 11.5 | 1.93 |
| 2" | RP/FP | 2000PSI | 140 | 134 | 38 | 11.5 | 6.00 |
| 2-1/2" | RP/FP | 2000PSI | 152 | 140 | 50 | 8 | 8.28 |
| 3" | RP/FP | 2000PSI | 190 | 140 | 50 | 8 | 9.00 |
| 4" | RP/FP | 2000PSI | 222 | 174 | 76 | 8 | 20.00 |
Product customization please consult customer service. We will answer your quotation!

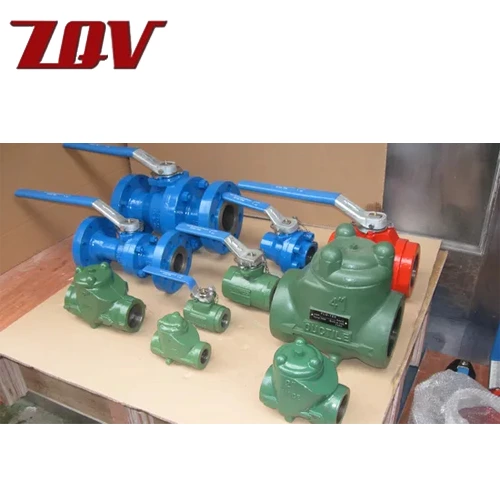

Factory Show
