EUE 8RD Threaded body Floating Oilfield Ball Valve
Size Range
2-3/8" EUE 2-1/16" , 2-7/8" EUE 2-9/16"
Body Materials
A351 CF8M / A216 WCB/ASTM A105
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
Stainless Steel SS316
Maximum Allowable Operating Pressure
3600 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
Stainless Steel SS316
End Connections
API 5B EUE
Design Standard
ASME B16.34 , MSS SP-110 , API608
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: EUECBV
Brand: OEM
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Ball
Construction: Threaded body
Test Standard: API 598
Product Description
2-PC EUE Floating Threaded/Grooved Ball Valves, Threaded Body Design, 2000PSI,3600PSI
Type:Series EUECBV
EUE Ball Valve
● Sizes: 2-3/8” and 2-7/8”
● Pressure: 3600 PSI NSCWP 3000PSI
● Port: Full Port
● Body/Cap: ASTM A216 WCB carbon steel
ASTM A351 CF8M stainless steel
ASTM A105
● Seat: Delrin
● Ball/ stem: ss trim ss420/ss304/ss316
● Ends: ASME B1.20.1(NPT)
● Features: NACE Compliant, 8 Round Threaded Ends, Locking Handle, Floating Ball
● Testing Standard : API 598
● Thread conform to : API 5B 8RD

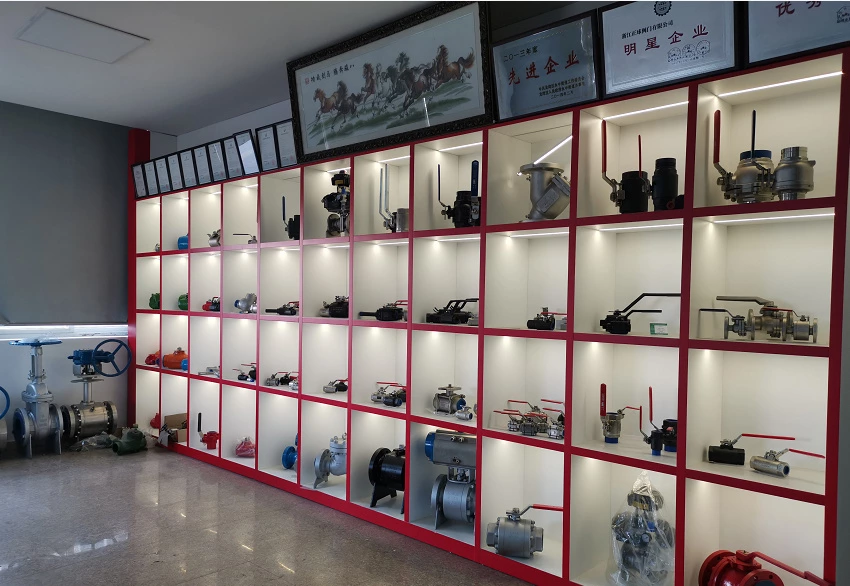

Factory Show
