Oil patch Ball Valve 600psi to 5000psi
Size Range
1“ to 4”
Body Materials
A105 / 4130
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
400 SERIES STAINLESS STEEL
Maximum Allowable Operating Pressure
3000 PSI (WOG) - 5000 PSI(WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
400 SERIES STAINLESS STEEL
End Connections
Threaded ASME B1.20.1 NPT / API 5B LP
Design Standard
ASME B16.34 , MSS SP-110,API 6D,API 608
Ports
Full Port/ Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Brand: ZQV, OEM
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil
Structure: Ball
Product Description
Our Oil Patch Ball Valves generate a lot of demand globally, owing to their durable construction and smart features. These Ball Valves are available in a huge range of sizes for fitting your every need perfectly. They come with ductile iron and carbon steel body options. You can buy our Oil Patch Ball Valves either with a full port or standard port. These threaded oil patch ball valves can smoothly operate in temperature range of 1000 psi to 5000 psi.
NACE MR0175 ASME B16.34

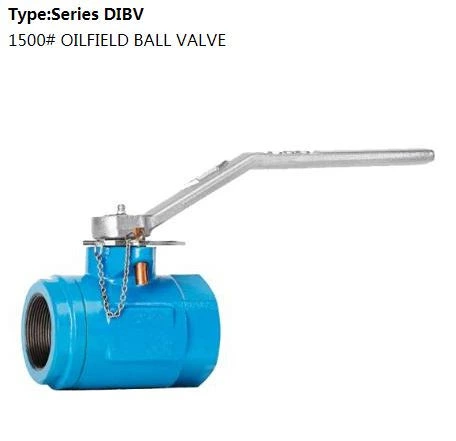

2-PC 1500# Oilfield Ball Valve

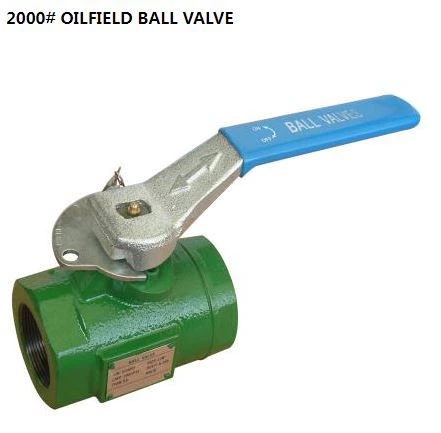

2-PC 2000# Oilfield Ball Valve
Carbon Steel Ball Valves/Oilfield Ball valves/Oil path ball valves/Tank ball valves
Ductile Iron Body
• 1000 psi
• Full Port
• 2 Piece
• RPTFE Seats
• Nace MR-01-75 Compliant
• Heavy Duty Locking Device
• Blow-out Proof Stem
• Double O-Ring Stem Seal
• Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture
• ISO: ISO 9001:2015 Manufacturer
