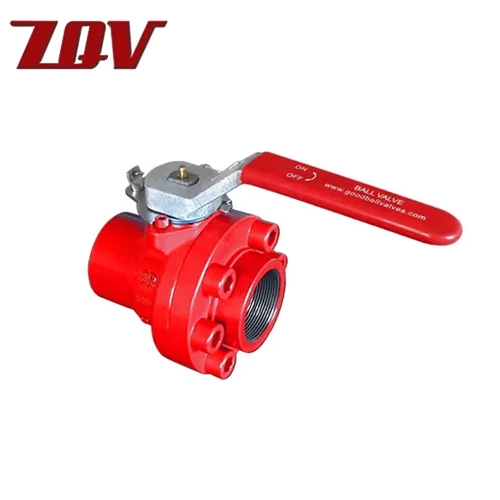

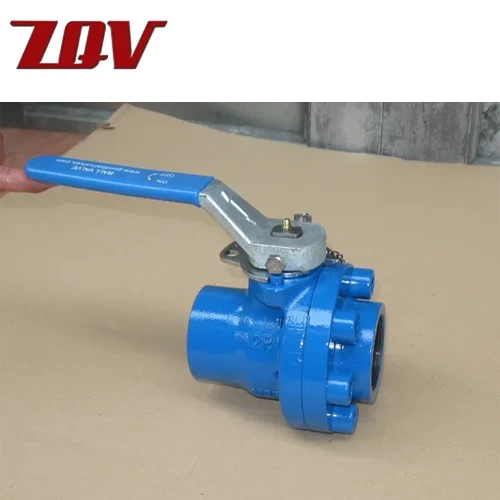

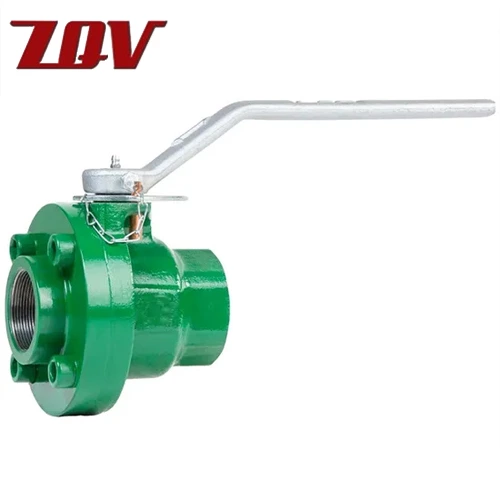

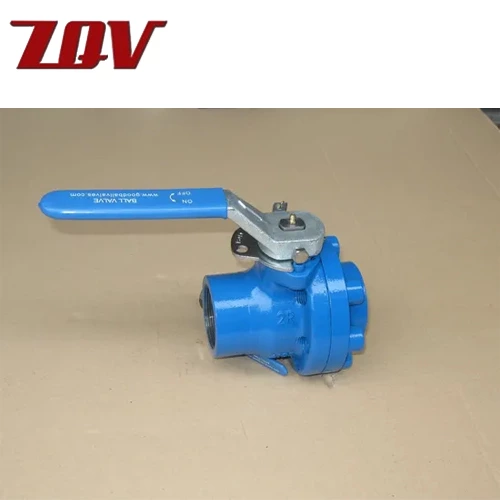

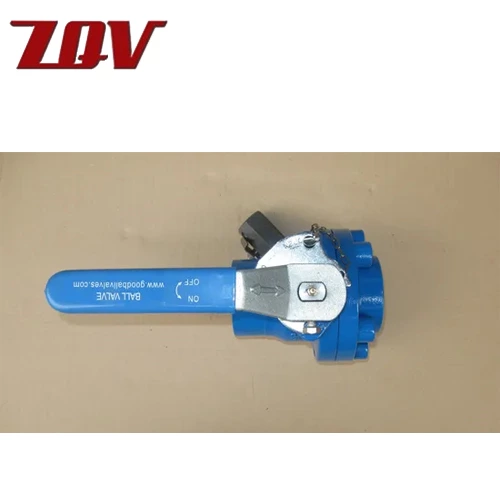

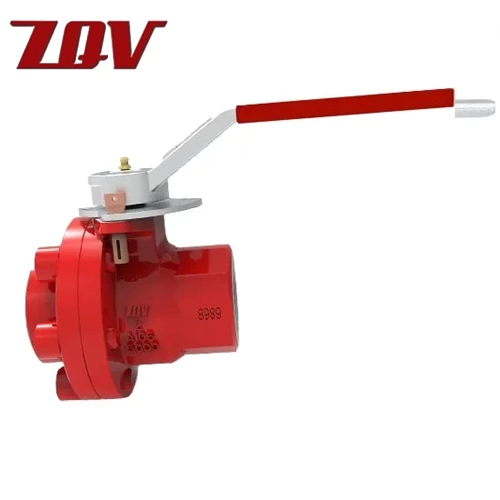

Threaded Bolted Body Full Port Ball valves
Size Range
2“ to 4”
Body Materials
A105 / 4130
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
400 SERIES STAINLESS STEEL
Maximum Allowable Operating Pressure
3000 PSI (WOG) - 5000 PSI(WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
400 SERIES STAINLESS STEEL
End Connections
Threaded ASME B1.20.1 NPT / API 5B LP
Design Standard
ASME B16.34 , MSS SP-110,API 6D,API 608
Ports
Full Port/ Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port/Reduced Port
Size: 1"FP, 2"RP, 2"FP, 2.5"FP, 3"RP, 3"FP, 4"RP, 4"FP
Pressure: 2500PSI, 3000PSI, 5000PSI NSCWP
Body/Cap: Carton Steel A105 Alloy Steel 4130
SEAT: DELRIN/PEEK
Ball/Stem: SS 420/SS 304/SS316
Ends: ASME B1.20.1(NPT)/API 5B LP
Features:
Bolted Body Construction
Blow-out-Proof Stem
Lockable Lever Handle
Test Standard: API598/ASME B16.34 NACE MR-0175
