Threaded Carbon Steel Oilfield Floating Ball Vave
Size Range
1“ to 4”
Body Materials
A105 / 4130
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
400 SERIES STAINLESS STEEL
Maximum Allowable Operating Pressure
3000 PSI (WOG) - 5000 PSI(WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
400 SERIES STAINLESS STEEL
End Connections
Threaded ASME B1.20.1 NPT / API 5B LP
Design Standard
ASME B16.34 , MSS SP-110,API 6D,API 608
Ports
Full Port/ Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: CSBV
Brand: ZQV
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Normal Temperature
Power: Manual
Flow Medium: Oil
Structure: Ball
Test Standard: API 598
Connection: NPT/LP
Max Temp: 180℉
Construction: threaded body
Product Description
Carbon Steel Oilfield Floating Ball Vaves are Quality Economical Valves which built for Extreme Oilfield Service. ZQV Oilfiled Ball Valves size range from 1''2''3''4'', both full port and reduce port
Fig. CSBV 3000PSI 5000PSI
Specification
- Size: 1" 2"3"4''
- Design: 2 Piece WCB body
- Inspection and test standards: API 598
- Pressure: 1000PSI1500PSI2000PSI3000PSI 5000PSI
- Working temperature: -28 ℃-120℃
- Seat Ring: Delrin(3000PSI)/PEEK(5000PSI)
- Body / Bonnet: WCB
- Ball: Stainless Steel 316 / 304/SS420
- Stem: Steel 316 / 304/ SS410/SS420
- Blow-out-proof stem
- Operation: Manual
- Suitable Medium: Water, Gas, Oil, et
- Nace MR-01-75-2009 Compliant
- Heavy Duty Locking Device
- Blow-out Proof Stem
- Double O-Ring Stem Seal
- Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture
| No | Part # | Material |
| 1 | Body | A216 WCB |
| 2 | Seat | Delrin |
| 3 | Ball | SS304 |
| 4 | Seal O-ring | HNBR |
| 5 | Cap | A216 WCB |
| 6 | Thrust Bearing | PTFE |
| 7 | Stem O-ring | HNBR |
| 8 | Thrust Bearing | PTFE |
| 9 | Stop Plate | Steel |
| 10 | Retainer Ring | Steel |
| 11 | Handle | Ductile Iron |
| 12 | Stem | A276 420 |
| 13 | Grease Zerw | Copper |
| 14 | Bolt | Carbon Steel |
| 15 | Stop Pin | Steel |
| 16 | Nameplates | Aluminum |
NOTE: We reserve the right to change materials and specifications.
Unit：mm(inch)

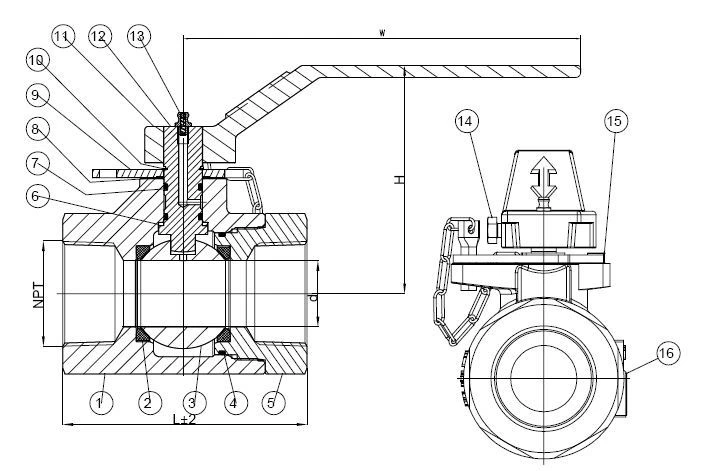

| Part# | Size | Pressure | Weight(LBS) | L | H | d | D |
| CSBV1FP-3000 | 1''x1'' | 3000PSI | 2.15(4.67) | 102(4.02) | 93(3.66) | 25(1.00) | 11.5NPT |
| CSBV15FP-3000 | 1-1/2''x1-1/2'' | 3000PSI | 6.05(13.15) | 140(5.51) | 134(5.28) | 38(1.5) | 11.5NPT |
| CSBV2FP-3000 | 2''x2'' | 3000PSI | 8.46(18.39) | 152(5.98) | 150(5.91) | 50(2.00) | 11.5NPT |
| CSBV3FP-3000 | 3''x3'' | 3000PSI | 24(52.17) | 222(8.74) | 172(6.77) | 76(3.00) | 8NPT |
| CSBV2RP-3000 | 2''x1-1/2'' | 3000PSI | 6.05(13.15) | 140(5.51) | 134(5.28) | 38(1.5) | 11.5NPT |
| CSBV4RP-1500 | 4''x3'' | 1500PSI | 24(52.17) | 222(8.74) | 172(6.77) | 76(3.00) | 8NPT |
NOTE: We reserve the right to change materials and specifications.
