Threaded Ductile Iron Oilfield Floating Ball Vave

Product Attributes

Model No.: DIBV

Brand: ZQV

Types Of: Ball Valves

Support Customization: Oem

Place Of Origin: China

Application: General

Medium Temperature: Medium Temperature

Power: Manual

Flow Medium: Oil

Structure: Ball

Connection: Threaded NPT

Pressure: to 2000 PSI NSCWP

Construction: Threaded body

Standard: API 641 emissions

Material: MEET NACE MR-0175

Product Description

Ductile Iron Threaded Floating Ball Valve is oilfield Ball Valves, two piece body, threaded end. Ductile Iron Threaded Floating Ball Valves size range from 1'' to 4'', with Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture, and heavy duty handle design.

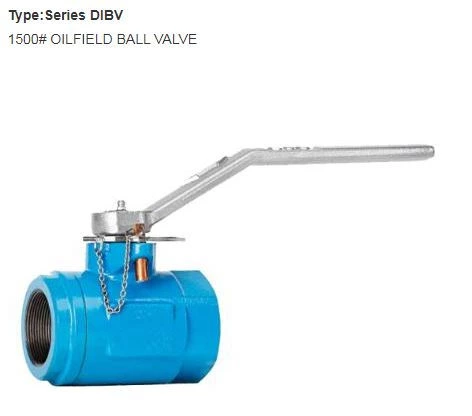

Fig: DIBV SERIES

Specification

• Ductile Iron Body
• 750 psi 1000 psi 1500 psi 2000 psi
• Standard Port/Full Port
• Pressure：1000PSI ,1500PSI, 2000PSI NSCWP
• BODY / CAP：ASTM A395 60-40-18 Ductile Iron
• SEAT: RPTFE / DELRIN
• BALL / STEM : SS TRIM SS420 / SS304 / SS316
• Max Temp.: 180℉
• Ends：ASME B1.20.1(NPT)
• 2 Piece  Threded End Body
• Nace MR-01-75-2009 Compliant
• Heavy Duty Locking Device
• Blow-out Proof Stem
• Double O-Ring Stem Seal
• Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture
