Carbon Steel threaded Check Valve 3000 PSI
Size Range
1" , 2" , 3" , 4"
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
-
Maximum Allowable Operating Pressure
3000 PSI (WOG) , 5000 PSI (WOG)
Seat Materials
VITON, HNBR
Body Style
Top Style
Ball Materials
SS304/SS316 DISC
End Connections
Threaded ASME B1.20.1 NPT ,API 5B LP
Design Standard
ASME B16.34 , API 6D
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
1" Ductile Iron Thread Swing Check valve 2000WOG,3000WOG,5000WOG
Function and Structure Advantage Description:
* Ductile Iron Swing Check Valves(300, 750, 1000, 1500, 2000 PSI WP)
* Series DICV
* Sizes Available:
1" - 1000, 1500, 2000
1 1/2" - 1000, 1500, 2000
2" - 300, 750, 1000, 1500, 2000
2" Long - 300, 750, 1000, 1500, 2000
2 1/2" & 3" - 300, 750, 1000, 1500, 2000
4" - 300, 750, 1000, 1500
* Materials:
Ductile Iron body, SS clapper, Viton seals
* End Connections: Threaded
| FEATURES: | ||
| 1 | SIZE:1'' TO 4'' | |
| 2 | SIZE 2'' 3'' 4'' WITH PLUG ON THE CAP | |
| 3 | PRESSURE: 300PSI TO 2000PSI WOG | |
| 4 | BODY MATERIAL: ASTM A 395 DUCTILE IRON | |
| 5 | SS 304 DISK | |
| 6 | PORT: FULL OPEN | |
| 7 | NACE MR-0175 COMPLIANCE | |
| 8 | HEX CAP | |

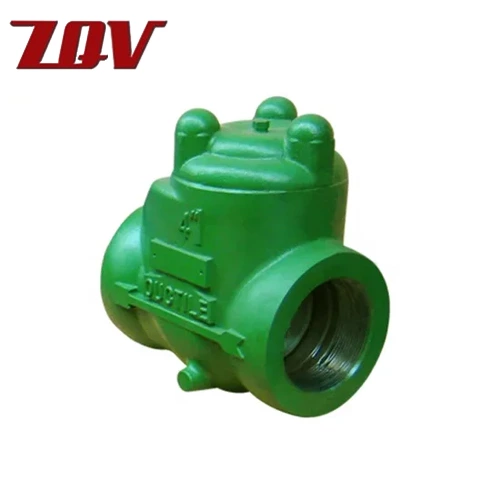

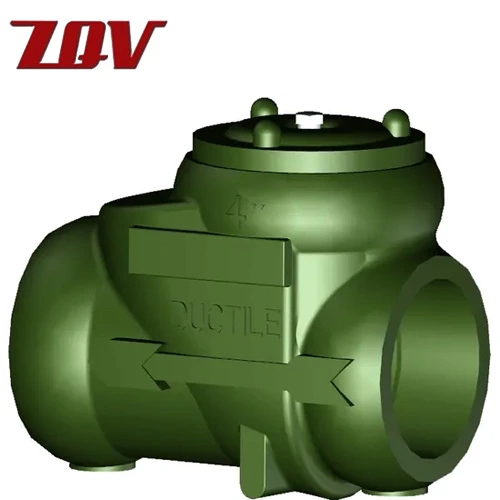

Fig # DICV Series
DUTILE IRON CHECK VLAVE
- Size: 1″ 2'' 3'' 4″ - 2",3",4" with plug on the cap 1" without plug on the Cap - Pressure: 300 to 2000 PSI WP -Body Material: ASTM A395 Ductile Iron - Disk: 304 SS - Seat and Seal: Viton - Port: Full Open - NACE MR-0175 Compliance - Inspection and Test Acc. to API 598
Fig # CSCV Series
CARBON STEEL CHECK VALVE
-Size: 1″ 2'' 3'' 4'' -2",3" with plug on the cap 1" without plug on the Cap -Pressure: 3000 to 5000 PSI WP -Body Material: ASTM A216 WCB -Disk: 304 SS -Seat and Seal: Viton -Port: Full Open -NACE MR-0175 Compliance -Inspection and Test Acc. to API 598

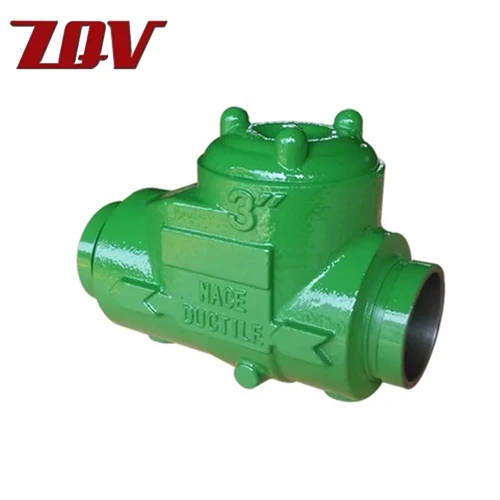

Fig # GRDICV Series
GROOVED END CHECK VALVE
-Size: 2″ 3″ -2",3",4" with plug on the cap -Pressure: 300 to 2000 PSI WP -Body Material: ASTM A395 Ductile Iron -Disk: 304 SS -Seat and Seal: Viton -Port: Full Open -Grooved Ends Conform to ASME B1.20.1(NPT) -NACE MR-0175 Compliance -Inspection and Test Acc. to API 598
Fig # DIBV Series
DUCTILE IRON OIL FIELD BALL VALVES
- Full Port/ Reduce Port
- Size:1''2''3''4''
- W.P.: 2000PSI
- Blow-out Proof Stem
- RPTFE SEAT
- Locking Handle
-SS Trim/316 Trim(option)
- NACE MR-01-75 - Inspection and Test Acc. to API 598 -Thread ASME B1.20.1(NPT) API 5B (LP)
Fig # CSBV Series
CARBON STEEL BALL VALVES
- Full Port/ Reduce Port
- Size:1''2''3''4''
-CWP: 100WOG/1500WOG/2000WOG/ 3000WOG/5000WOG
- Blow-out Proof Stem
- Delrin /Peek SEAT
- Locking Handle
- Grease zerk
-SS Trim/316 Trim(option)
- NACE MR-01-75
- Inspection and Test Acc. to API 598
Fig # ABBV Series
BOLTED FLOATING BALL VALVE
- Reduce Port - 3000WOG/5000WOG CWP - 2-Piece Bolted Body - Blow-out Proof Stem - (3000PSI)Delrin & (5000PSI)Peek Seat - NACE MR-01-75 - Locking Handle - Grease Zerk - SS Trim/316 Trim(option)
- Inspection and Test Acc. to API 598 ---- Thread Conform to ASMEB1.20.1(NPT) API 5B (LP
