NPT Threaded Swing check valve 300 PSI

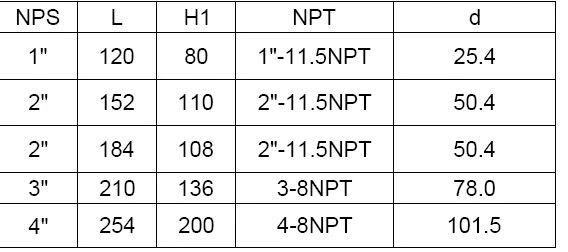

Size Range
1" , 2" , 3" , 4"
Body Materials
Ductile Iron A395 DI
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
-
Maximum Allowable Operating Pressure
300 PSI (WOG) - 2000 PSI (WOG)
Seat Materials
VITON, HNBR
Body Style
Top Style
Ball Materials
SS304/SS316 DISC
End Connections
Threaded ASME B1.20.1 NPT ,API 5B LP
Design Standard
ASME B16.34 , API 6D
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: DICV
Brand: ZQV
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Normal Temperature
Power: Manual
Flow Medium: Gas, Oil
Structure: Ball
Construction: swing type
Port: Full Port
Seat&Seal: Viton
Design Character: With plug on the cap
Product Description

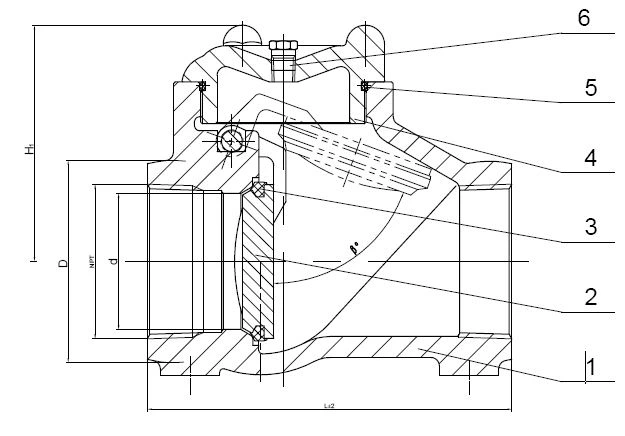

Ductile Iron Female Threaded End Swing Check Valve, NPT, Full Port, 300 PSI
Fig. DICV
300 psi, 600 psi, 720 psi, 750 psi, 1000 psi, 1440 psi, 1500 psi, or 2000 psi

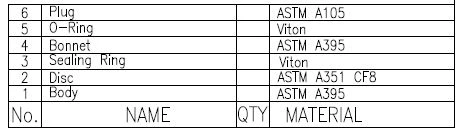

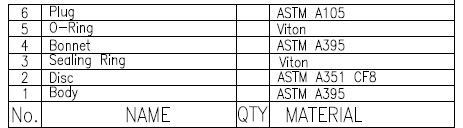

Design
• Body /Cap: ASTM A395 60-40-18 Ductile Iron
• Threaded Cap Construction
• Pressure rate: 300, 600, 720, 750, 1000, 1440, 1500, or 2000 psi
• Seat: Soft Seat/VITON/NBR)• Nace MR-01-75-2009 Compliant
• Disc: SS Trim CF8/CF8M
• 316 Stainless Steel, One-Piece Hanger and Disc
• Full Flow When Open
• Top Entry Swing Check
Technical Requirements
-
Design and Manufacture: API 6D
-
Pressure and Temperature Rank: ASME B16.34
-
Fave to Face: factory
-
Threaded end: NPT(ASME B1.20.1)
-
Test and Check: API 598

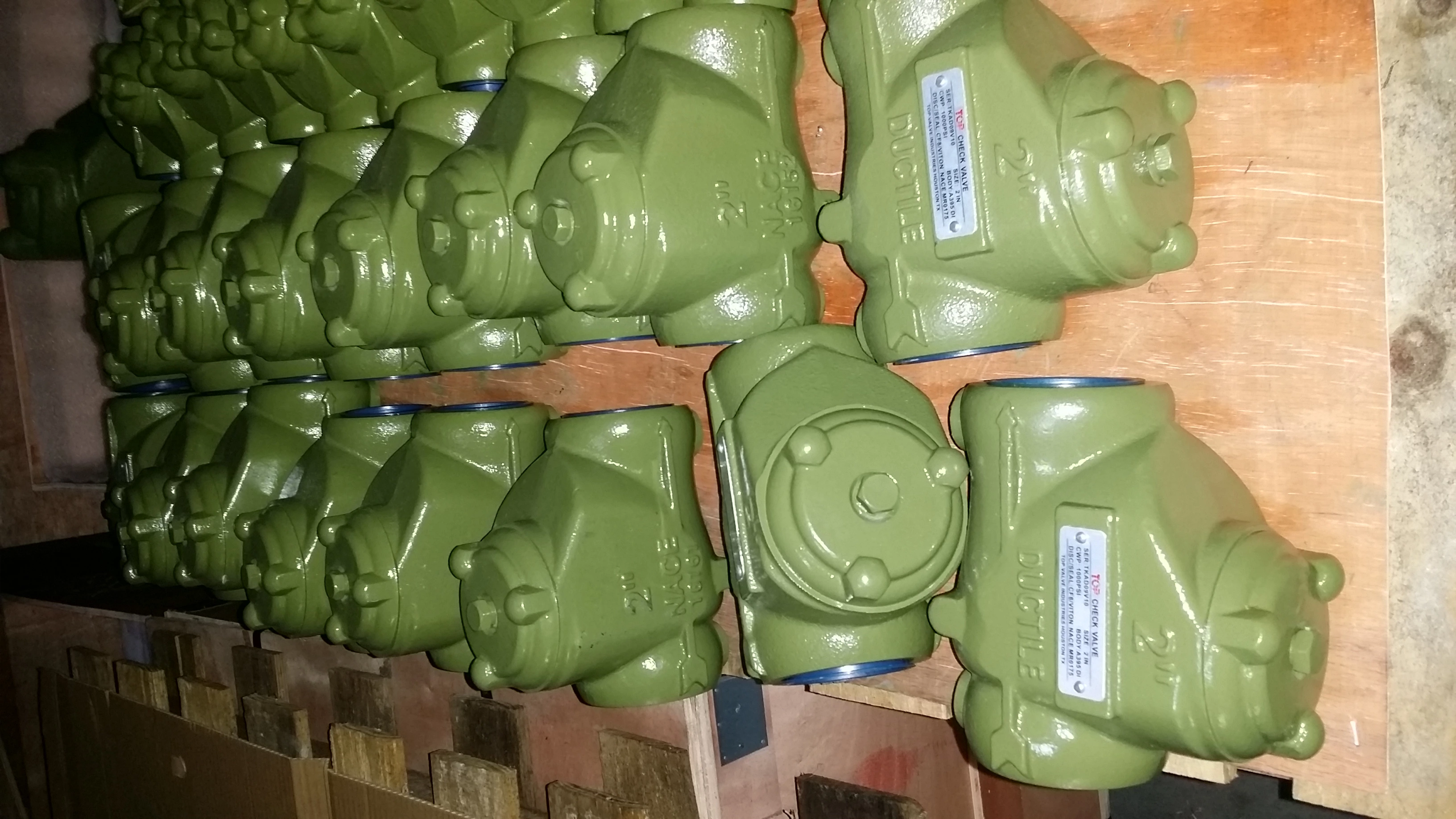

Factory Show
