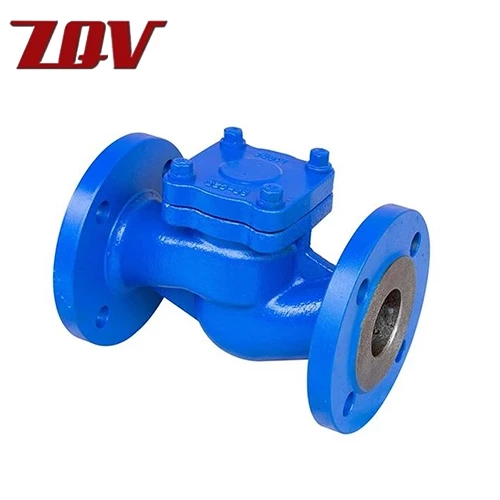

DIN Lift Check Valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Technical Specification
Normal Size Range: DN15-DN300
Normal Pressure Rating: PN10~PN40
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29°C~425°C
Standards compliance
Design and Manufacture: DIN3356
Inspection and Test: ISO 5208,EN12266
Flanged ends dimension: DIN2543 ,DIN2544,DIN2545
Butt-welded ends dimension: EN12627
Face to face and end to end: DIN3202,EN558-1,ISO5752
Pressure-temperature ratings: DIN2401
Test & Inspection: DIN3230
