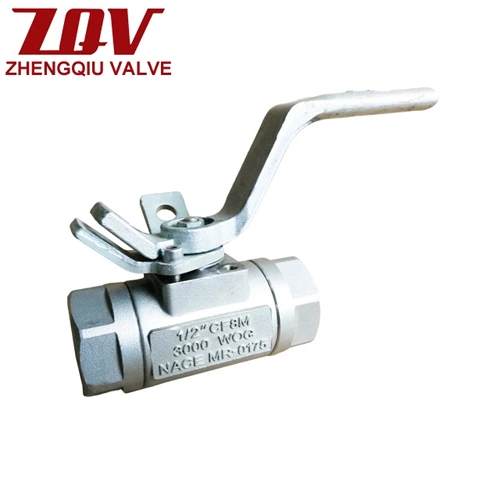

2-Piece Seal Welded Threaded Ball Valves

Product Attributes

Model No.: 3000WC/3000WSW

Brand: ZQV

Types Of: Ball Valves

Support Customization: Oem

Place Of Origin: China

Application: General

Medium Temperature: Normal Temperature

Power: Manual

Flow Medium: Oil

Structure: Ball

Construction: Seal Welded

Design Standard: ASME B16.34

Body: Investment Casting

Product Description

Seal Welded threaded Ball Valves 3000PSI fire-safe, characterized by seal-weld cap and body. Double insurance the safety.

Figure Numbers: 3000WC/3000WSW

These 3000 PSI seal welded Ball Valves come with the cap seal welded to the body, enlarged bottom-loaded blow-out proof stem. Their strengthened construction secures 3000 psi working pressure rating.

PRESSURE RATING: ASMEClass 900

2200 PSIG @ 100F W.O.G.—WCB Body

2160 PSIG @ 100F W.O.G.—CF8M Body

Design Features

•  Seal Welded * Fire Safe * Threaded Ends

• 1/4”~2” (DN8~DN50)

• W.P. : 3000 WOG (PN250)

• W.T. : -20°C~260°C (-4°F~500°F)

• Investment casting

• Adjustable Packing Gland

• Blow-out proof stem

• Anti-static device (option)

• Locking device

• Mounting pad ISO 5211

• Seal welded Body

• ASME B16.34 Wall thickness

• NACE MR0175 Fully Compliance

• API 607 Fire safe approved

• API 598 pressure test

• Seat: Delrin/RPTFE

• ISO 5211 direct mounting Pad

• Thread type:

  • ASME B1.20.1 (NPT)

  • DIN2999 & BS21

  • ISO7/1 & EN10226

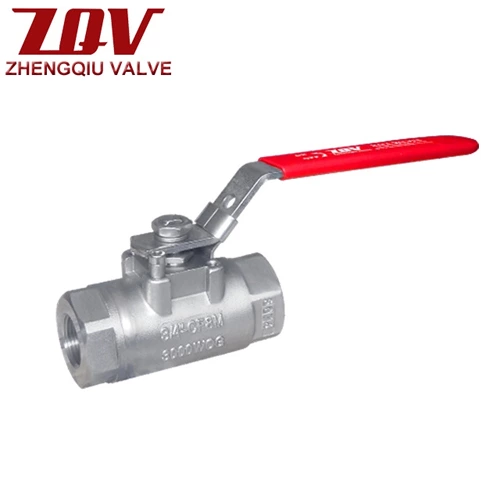

Fig # 3000WSW Series

2-PC Ball Valve 3000PSI

- Full Port
- W.P.: 1/4''-2'' 3000PSI
- Blow-out Proof Stem
- API 607 Anti-Fire
- Delrin Seat Standard
- SEAL WELDED Desgin(Option)

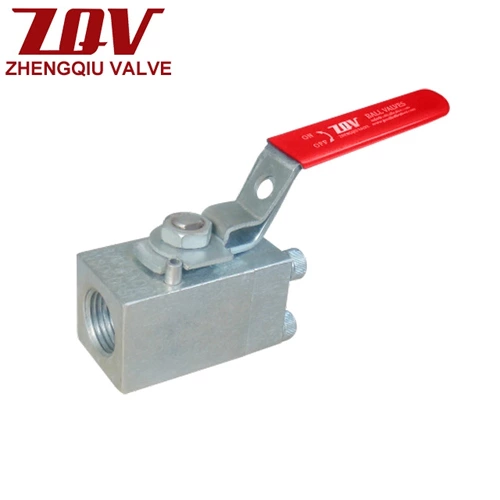

Fig # LM-C Series

Compact Floating Ball Valve 3000PSI

- Full Port
- W.P.: 1/4''-1'' 3000PSI
- Bolted Body Construction
- Blow-out Proof Stem
- NYLON Seat
- Compact Locking Device

Fig # T3 Series

3-PC Cap-screw Ball Valve 3000PSI- Full Port
- W.P.: 1/4''-1'' 3000PSI
- Cap-screw construction
- Blow-out Proof Stem
- Delrin Seat Standard

- LF2, SS316 (Option)
