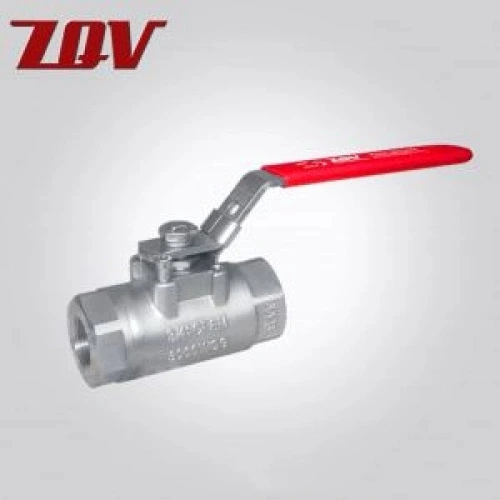

2PC Seal Welded Threaded Ball Valve 3000 PSI
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: 3000WC
Brand: ZQV OEM
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Water, Gas, Oil
Structure: Ball
Body Construction: 2pc investment casting body
Max Temp:: 180 ℉ 82℃
Product Description
2PC 3000PSI Seal Welded High Pressure Threaded Ball Valves
Type:Series 3000WC / 3000WSW
Design Features
● Pressure rate: 3000 psi
● Carbon Steel ASTM A216 WCB or 316 Stainless Steel ASTM A351 CF8M
● Theaded Ends with Delrin Seats and PTFE Seals or Socket Weld Ends with PEEK Seats and Graphite Seals
● Live Loaded, Blow-Out Proof Stem
● Anti-Static Device
● Mounting Pad
● Lockable Lever Handle Applicable Standards
● Mounting Dimensions (1/2” - 2”) ISO 5211
● Threaded Ends ASME B16.11
● Shell and Seat Pressure Test ASME B16.34
● NACE MR-0175 2002
Factory Show
