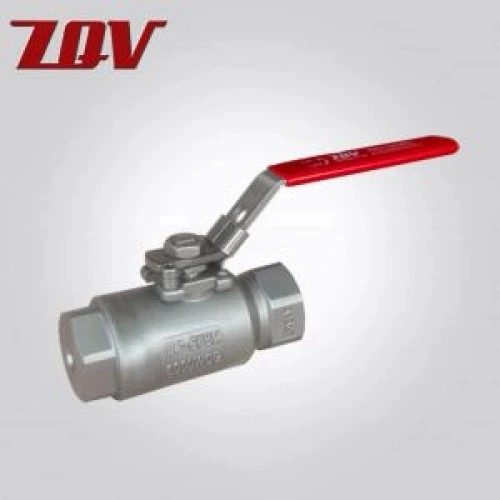

2PC Threaded Seal welded Ball Valve 6000PSI
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
6000 PSI (WOG) CLASS2500
Seat Materials
Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: 6000WSW
Brand: ZQV
Warranty Period: 3 Years
Types Of: Ball Valves
Support Customization: Oem
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Ball
Body Construcion: seal welded body
Body: Investment Casting
Product Description
Specification
Two-Piece Seal Welded Full Port Ball Valves 6000PSI
With threading that conforms to ASME B1.20.1 standards and certified to API 607, you can rest assured that your newest Seal Welded Threaded Ball Valve has the strength to safely perform all necessary operations.
For more information on our seal welded ball valves, or if you are looking to acquire some of your own, contact us today—we’re looking forward to helping you.
Type:Series 6000WC / 6000WSW
•2-piece body wrought carbon full port design
•Seal Welded for added structural stability
•Working pressure of 6,000 psi (WOG)
•Suitable for full range of liquids and gas
•Pressure tested according to API598
•100% individually tested
•Meets NACE MR0175 standard
•ISO 9001 standard
•Blowout Proof Stem
• Adjustable Packing • 316 SS Ball and Stem
• Standard Locking Handle • Actuator Mounting Pad
• PEEK Seats Standard
• 6000 psi, Sizes 1/4 in. - 1 1/2 in. (8 mm - 40 mm) Full Port
• 6000 psi, Sizes 2 in. (50 mm) Reduced Port
• Conforms to NACE MR0175 / ISO 15156 Specifications
