Pressure Sealing Screwed Gate Valve
Pressure Sealing Screwed Gate Valve

Pressure Sealing Screwed Gate Valve

Description

Product Attributes

Model No.: PSGV

Brand: OEM

Types Of: Gate Valves

Support Customization: Oem

Place Of Origin: China

Application: General

Medium Temperature: Normal Temperature

Power: Manual

Flow Medium: Oil, Water, Gas

Structure: Gate

Bonnet Construction: threaded and pressure seal bonnet

Connection End: SW, BW, Threaded NPT

Product Description

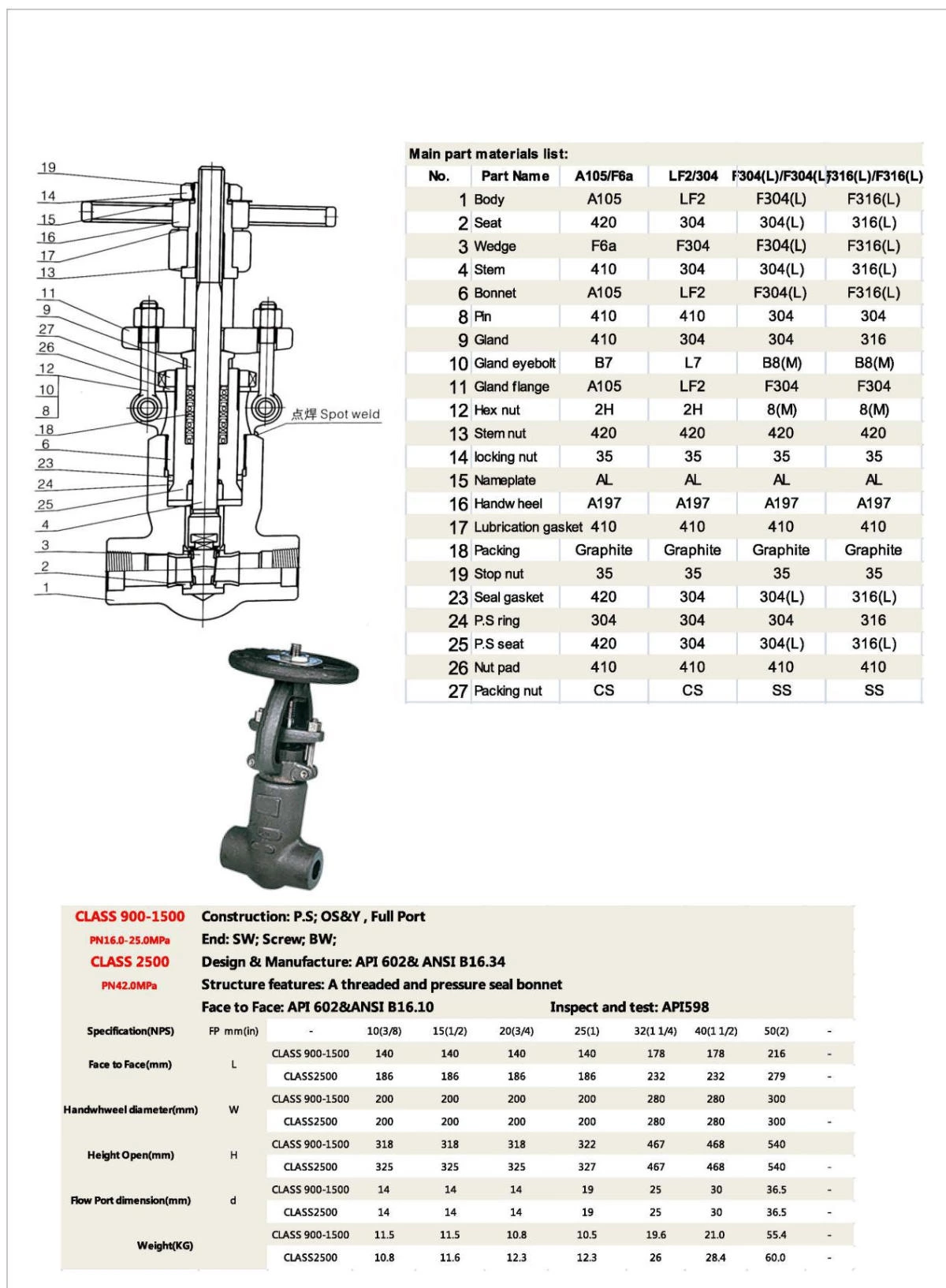

1500LB 2500LB Pressure Seal  Gate Valve BW end SW end

PSGV Series

  • API 602, ANSI B16.34 Design and manufacture standard
  • Connection: SW conform to B16.11, Screw end conform to ANSI B1.20.1, BW conform to ANSI B16.25
  • API 598 test and inspection standard.
  • Main material: A105, LF2,F5,F11,F22, 304L,316L,F5
  • Trim 8#10#12# etc
  • Pressure rate: Class 900~ Class 1500, Class 2500

Pressure Sealing Screwed Gate Valve
