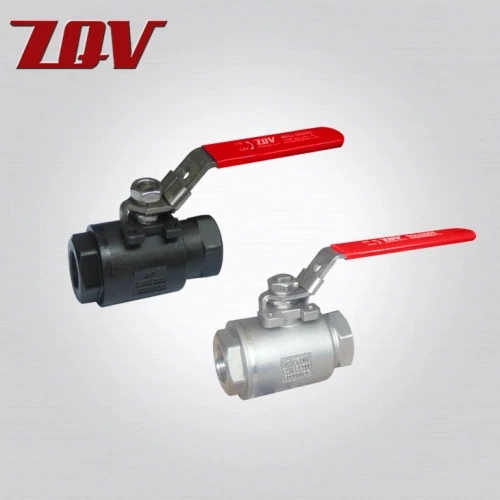

Cast Threaded Ball Valves: The Invisible Champions Of Industrial Fluid Control
In modern industrial systems, the reliability and efficiency of fluid control equipment directly impact the safety and productivity of entire processes. Among various valve types, cast threaded ball valves stand out due to their unique structural advantages and superior performance, making them indispensable components in critical industries such as petrochemicals, pharmaceuticals, food processing, and energy production. This article provides an in-depth analysis of the technical features, application benefits, and selection criteria for cast threaded ball valves, offering a professional reference for engineers and technicians.
1. Casting Technology: The Foundation of Superior Performance
The core strength of cast threaded ball valves lies in their precision casting process. Valve bodies produced using investment casting or lost-wax casting exhibit dense microstructures and excellent mechanical properties. Compared to forged valve bodies, cast designs allow for more complex flow paths, reducing fluid resistance by up to 40%. Independent tests by international valve certification agencies show that precision-cast CF8M stainless steel valve bodies demonstrate 15-20% higher pressure resistance than forged equivalents, making them ideal for high-pressure applications (PN16-PN64).
Material selection is equally critical. High-end cast threaded ball valves typically use ASTM A351 CF8/CF8M stainless steel or ASTM A216 WCB/WCC carbon steel, which, after proper heat treatment, achieve tensile strength ≥485 MPa and elongation ≥30%, fully complying with API 608 and BS 5351 standards. High-quality cast valve bodies undergo X-ray and ultrasonic inspection to ensure zero defects (no porosity or slag inclusions), achieving ANSI/FCI 70-2 Class VI zero-leakage standards.
2. The Engineering Brilliance of Threaded Connections
The threaded connection is a defining feature of these valves, embodying deep engineering wisdom. Tapered (NPT) or parallel (BSP) threads, machined to ASME B1.20.1 standards, create an interference fit when tightened, ensuring a reliable metal-to-metal seal without additional gaskets. Real-world engineering data confirms that properly installed NPT threads can withstand up to 10,000 psi, making them ideal for high-pressure oil and gas drilling equipment.
Compared to flanged connections, threaded designs save 60% installation space and reduce weight by 45%, offering decisive advantages in offshore platforms and mobile equipment. A case study in marine engineering showed that switching to threaded ball valves reduced 80 kg per wellhead, significantly cutting structural support costs. Additionally, 1/8" to 2" small-bore threaded ball valves feature a monoblock body design, eliminating bolt loosening issues common in flanged valves and improving seismic resistance.
3. The Fluid Control Revolution: Rotary Ball Design
The heart of a ball valve lies in its rotating ball mechanism. Precision-lapped balls with roundness errors ≤0.001 mm and surface roughness Ra ≤0.4 μm, paired with PTFE or metal seats, achieve near-perfect sealing. Industry tests show that premium ball valves require 30-45% less operating torque and exceed 100,000 cycles without leakage, thanks to innovations such as:
-
Self-lubricating bearings (graphite-impregnated, friction coefficient as low as 0.08) for maintenance-free operation over a decade
-
Blowout-proof stem design (per API 607) ensuring stem integrity even under extreme pressure
-
Double Block & Bleed (DBB) functionality (per API 6D) allowing safe depressurization during maintenance
In flow control, full-bore ball valves offer 20-30% higher Cv values than gate valves of the same size, with 75% lower pressure drop. A petrochemical plant reported 18% lower pumping energy costs after replacing globe valves with full-bore ball valves, saving over $1 million annually.
4. Industry-Specific Customization for Specialized Applications
Modern cast threaded ball valves come in specialized variants for diverse industries:
-
Cryogenic service: Extended bonnet design keeps packing at ambient temperature; LCB materials pass -196°C impact tests
-
Corrosive media: Hastelloy C276 balls with PFA lining resist pH 0-14
-
Sanitary applications: 3A-certified tri-clamp valves, electropolished to Ra ≤0.8 μm, meet FDA standards
-
High-pressure steam: Chrome-molybdenum steel bodies with metal seals withstand 450°C (power plant boilers)
A biopharmaceutical case study confirmed that ultra-smooth ball valves reduced microbial contamination risks by 90% and improved CIP cleaning efficiency by 40%, proving the value of proper valve selection.
5. Smart Upgrades & Lifecycle Management
With Industry 4.0, smart cast threaded ball valves are gaining traction. Valves equipped with pressure/temperature sensors and HART communication enable real-time seal integrity and flow monitoring. A smart oilfield project reported 92% predictive maintenance accuracy and 60% lower maintenance costs.
For sustainability, leading manufacturers adopt full lifecycle management—from raw material sourcing to end-of-life recycling. Digital twin-optimized casting reduces scrap rates from 5% to 1.2%, while 95% of chromium/nickel is recovered from retired valves, supporting green manufacturing.
Conclusion: Choosing the Right Partner for Fluid Control Excellence
Though small, cast threaded ball valves play a massive role in industrial fluid control. When selecting valves, prioritize:
✔ API/ASME certifications
✔ Real-world application compatibility
✔ Manufacturer experience
Implementing a valve asset management system to track maintenance and performance ensures data-driven replacement decisions.
In today’s global market, only valve manufacturers with core casting expertise and cross-industry experience can deliver truly reliable solutions. Let’s drive industrial processes toward greater safety, efficiency, and intelligence—one valve at a time.
