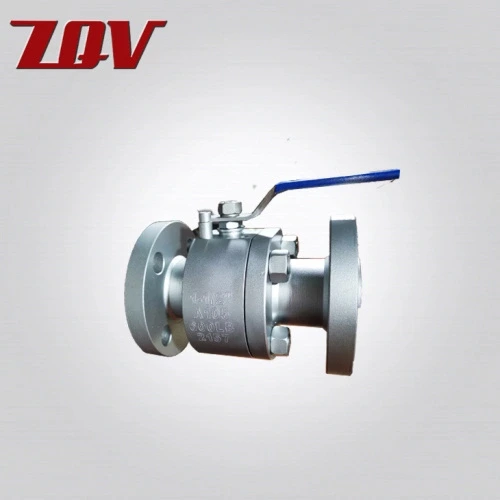

Flanged Floating Ball Valves: The Reliable Guardian Of Industrial Pipeline Systems

In modern industrial pipeline systems, flanged floating ball valves have become the preferred control equipment in petrochemical, power energy, and district heating sectors due to their excellent sealing performance and reliable structural design. This article provides an in-depth analysis of this critical fluid control component's working principle, technical advantages, and industrial applications.

1. Innovative Structural Design: The Wisdom of Floating

Flanged floating ball valves adopt a unique "floating ball" design concept:

• Self-balancing system for middle cavity pressure ensures stable operation under 10-40bar conditions

• Bidirectional metal hard seal structure with leakage level reaching ANSI B16.104 Class VI

• Anti-static device complies with ISO 15848-1 standard, resistance value <10Ω

Comparative test data from a refinery shows that in media containing solid particles, floating ball valves have 35% longer service life than fixed ball valves, with maintenance cycles extended from 3 months to 9 months.

2. Ultimate Application of Material Science

For different working condition requirements, flanged floating ball valves employ special material combinations:

• High-temperature steam pipelines: WC6 chrome-moly steel valve body with STL alloy sealing surface (withstands 650℃)

• Strong corrosive environments: Duplex 2205 valve body + PTFE lining, resistant to Cl- ion concentration up to 50,000ppm

• Cryogenic service: LCB material with deep cryogenic treatment, passing -196℃ impact test

Particularly noteworthy is that through metallographic structure optimization, modern floating ball valves achieve ball roundness of 0.001mm level and surface roughness Ra≤0.2μm.

3. New Era of Intelligent Maintenance

The new generation of intelligent flanged floating ball valves integrates multiple innovative technologies:

• Wireless torque monitoring system for real-time stem force data collection

• AI-based wear prediction model with accuracy >90%

• Digital twin system for full lifecycle management

Practical data from a smart pipeline project shows that using intelligent ball valves reduces preventive maintenance costs by 42% and unplanned downtime by 75%.

4. Industry-Specific Custom Solutions

1. Oil & gas: API 6D certified, fire-safe design compliant with API 607 standard

2. District heating: Fully welded valve body structure with heat loss <0.5%

3. Food & pharmaceutical: 3A certified, electropolished interior surface Ra≤0.4μm

An LNG terminal case study shows that using specially designed floating ball valves improved BOG recovery efficiency by 18%, saving over 2 million yuan annually.

5. Professional Selection Guide

• Pressure rating options: PN16～PN420

• Temperature range: -196℃～+650℃

• Connection standards: ANSI B16.5, EN1092-1, etc.

• Operation methods: Manual, pneumatic, electric, hydraulic

It's recommended to choose manufacturers with multiple certifications including ISO 9001, API 6D, CE/PED.

Conclusion

Flanged floating ball valves, with their innovative design concepts, excellent sealing performance, and intelligent management approaches, are setting new reliability standards for modern industrial pipeline systems. Selecting suppliers with complete qualifications and rich application experience will create greater value for enterprises.
